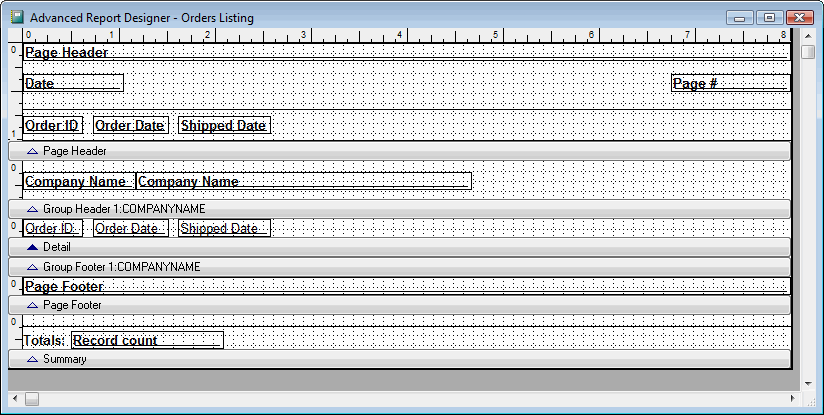

Let's create an advanced layout for the Orders report we created in Lesson 1 of the tutorial. We want to create a 2-column report so more information fits on each page. First, click this report in the Reports Explorer and choose Edit. Go to Step 5, then turn on the Advanced Layout setting and click Edit. The Advanced Report Designer appears as shown below.

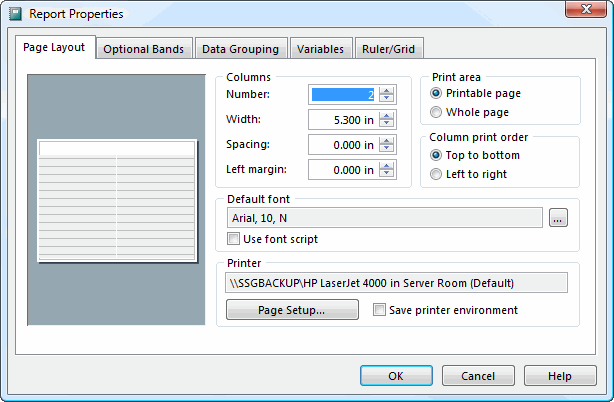

Choose Page Setup from the File menu, click the Page Setup button, choose Landscape and click OK. Change the number of columns to 2. Click OK.

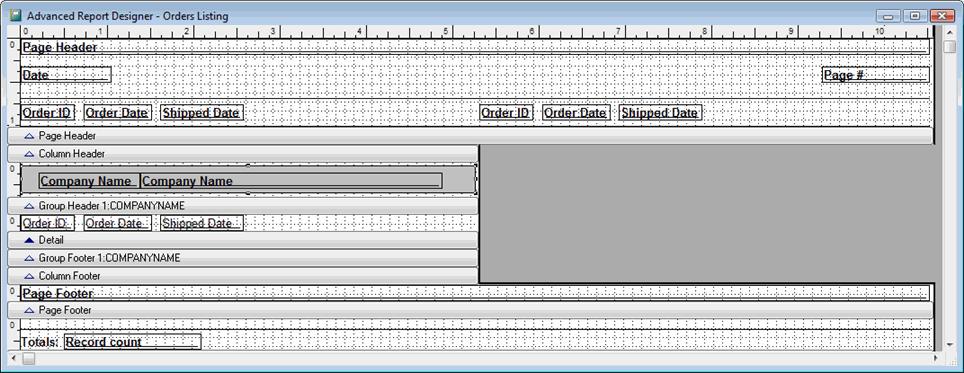

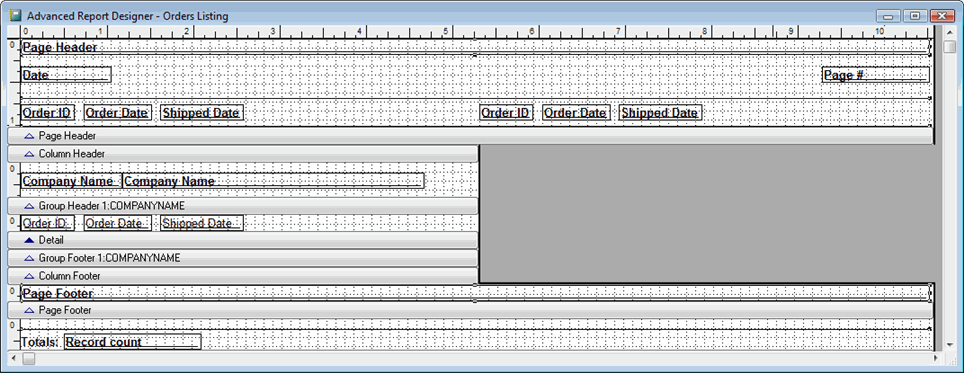

Select the column heading objects, choose Copy from the Edit menu, then choose Paste to create duplicates, and move the duplicates to the right of the originals. Move the page number object to the right edge of the window, and adjust the widths of the page header and page footer fields and the lines in the page header and summary bands so they cover the width of the report. The report now looks like this:

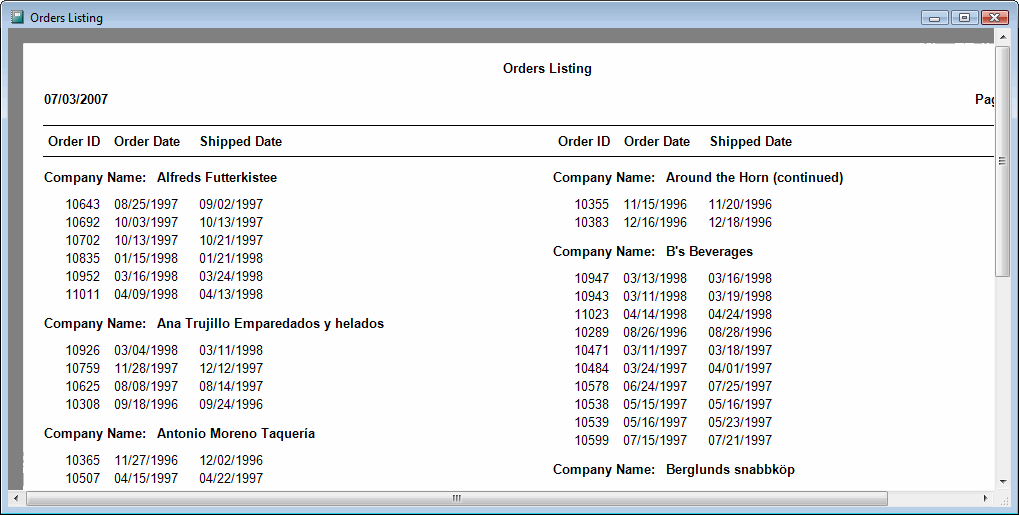

Choose Print Preview from the Report menu to view the report; it looks like this:

Let's add a grey rectangle in the group header to make it stand out. To make room for the rectangle at the left, select all objects in the group header band by holding down the Shift key and double-clicking the grey bar for the band, then click one of them and drag slightly to the right. Now click the Rectangle object () in the Report Controls toolbar, click near the upper left corner of the group header band and drag to the lower right corner to draw a rectangle. Click the Background button () in the Color Palette, then click the light grey button to make that the fill color for the rectangle. Oops, the rectangle now completely covers the labels and fields in the band. Click the Send to Back button () to move the rectangle behind the other objects. The report now looks like this:

Let's add a logo to the report. To make room for the logo, click the grey bar for the Page Header band and drag it down. Select all the objects in that band by holding down the Shift key and double-clicking in the grey bar, then click one of them and drag down. Click the Picture button () in the Report Controls toolbar, then click near the upper left corner of the Page Header band and drag to the right down to about 1.5 inches deep. When the Report Picture dialog appears, click the button beside the text box for Image source and choose an image file. Choose the Scale Picture, Retain Shape option and choose OK. You can then rearrange the other objects in the Page Header band around the logo as desired.

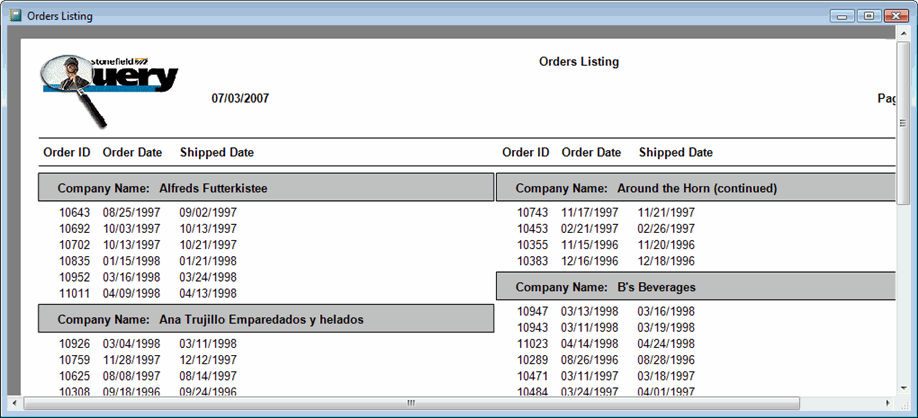

Preview the report again. Here's the finished product:
